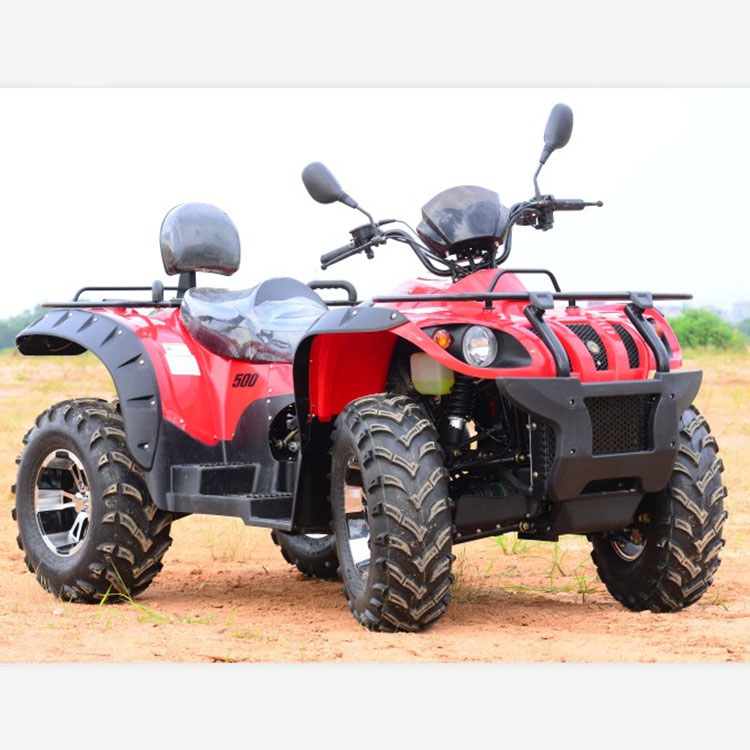

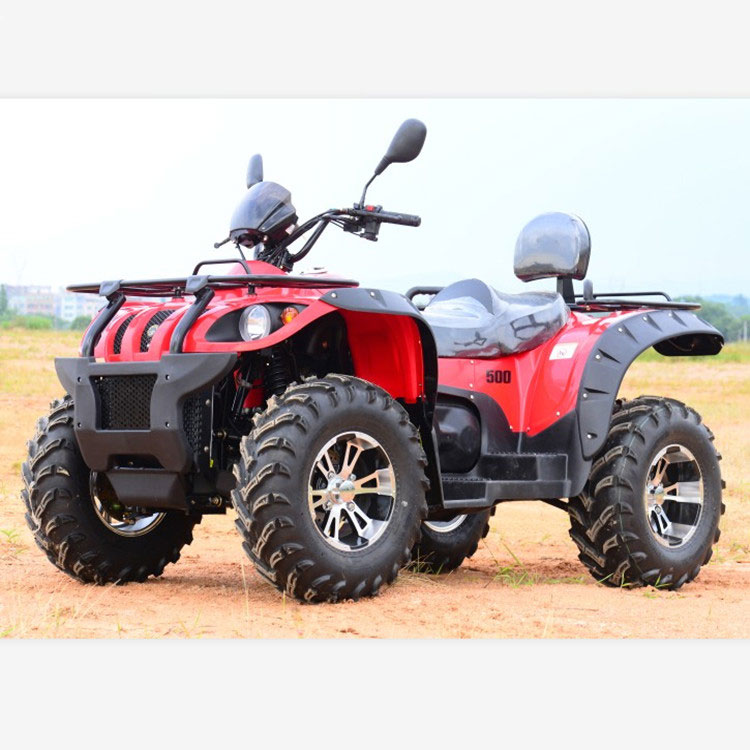

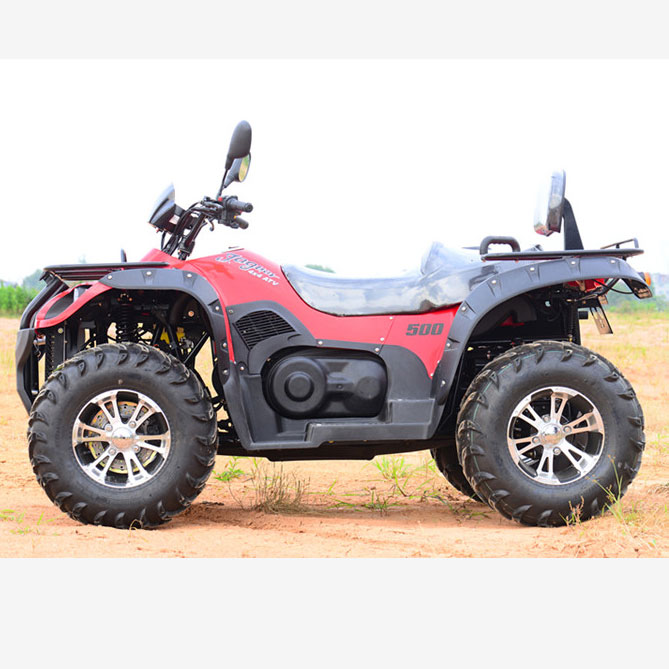

500cc ATV (Kazuma)

1) Engine: 4 strokes,water- cool,CTV  Belt Fully Auto ,500CC 4X4 and Extra Lower Gear

2) Cylinder: Single cylinder

3) Lubrication: Pressure splash

4) Cylinder Bore Diamiter: 92mm(3.63")

5) Piston Stroke: 75mm(2.96")

6) Displacement:498.6cc

7) Compression Ratio:10.2:1

8) start :Electric with a set of keys

9) Transmission:CVT Fully Auto ,hand reverse

10) Shaft Driver

11) Gear Shiftting R, N, D, L (Reverse, Neutual, Drive, Low gear)

12) Max Power:24kw(32.3HP) /6300r /min

13) Max Torge:40 N.m /4800r /min

14) L xW xH:2250mmx1150mmx1200mm

15) Brake:Front + Rear Disc Brake

16) Fuel capacity :10.5 L

17) Top speed :47 MPH

18) Suspension :Independent front suspension with adjustable shocks

               Heavy duty rear swing arm with adjustable shocks

19) seat high :driver:880mm ,Passenger :960mm

20) Tires:(Ft)25X8-12,(Rt)25x10-12/Ft26X-12,(Rt)26X11-12 with alloy hub

21) Colors:Dark green ,Camo ,Red

22) Rack Capacity : (Fr)35kg ,(Rr)70kg

23) with speedmeter, reviewmirror, seat back

24) 2 person ATVs
